Cascom SE
Cascom SE combines high-frequency induction heating with vacuum-pressure casting technology to deliver clean, reliable, and high-quality casting results. Designed to minimize porosity and produce smooth casting surfaces, it supports precious, semi-precious, and non-precious alloys. User-friendly operation and Japanese manufacturing quality make Cascom SE an ideal solution for modern dental laboratories.
特長
■ Excellent Casting Performance

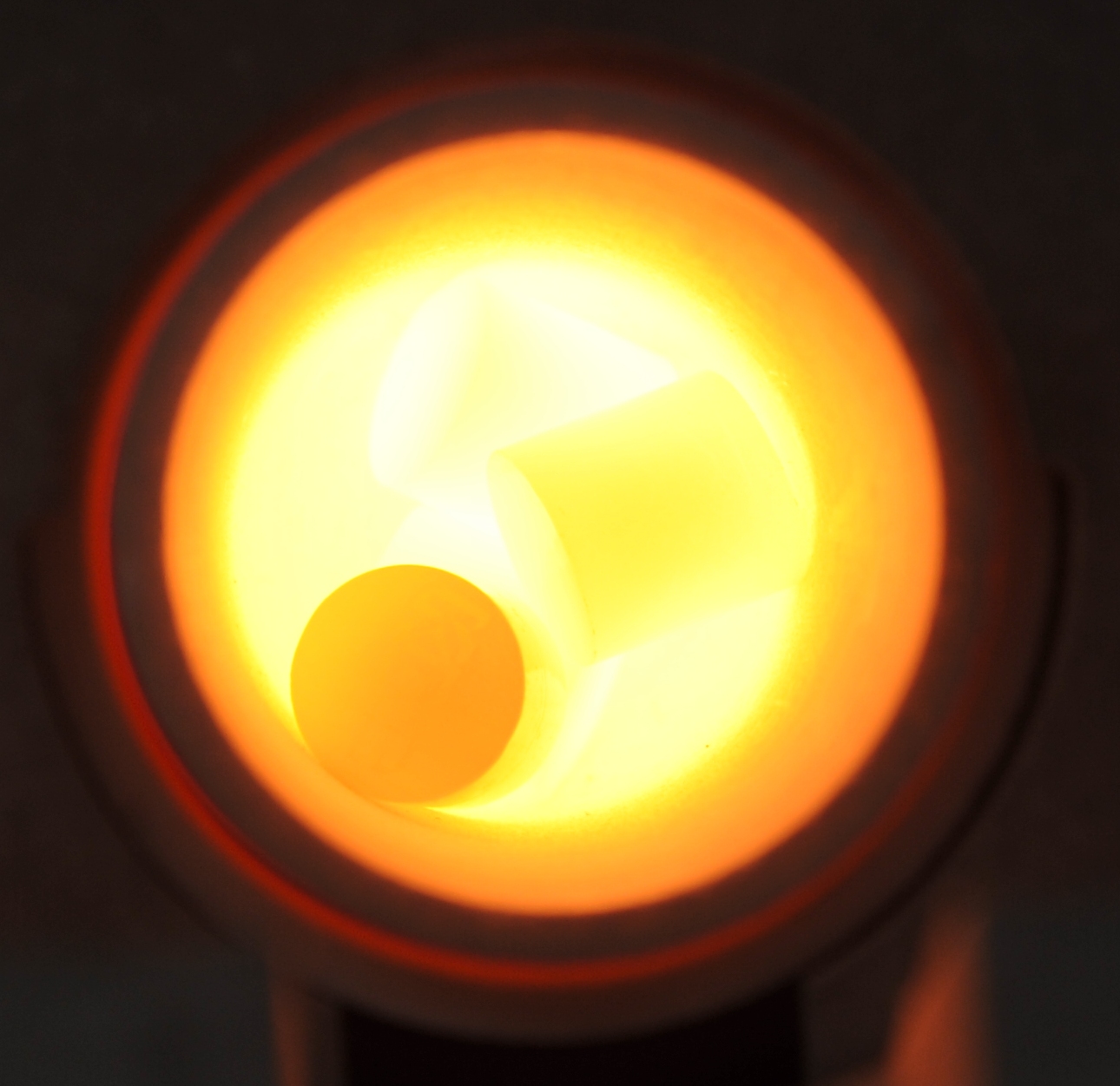

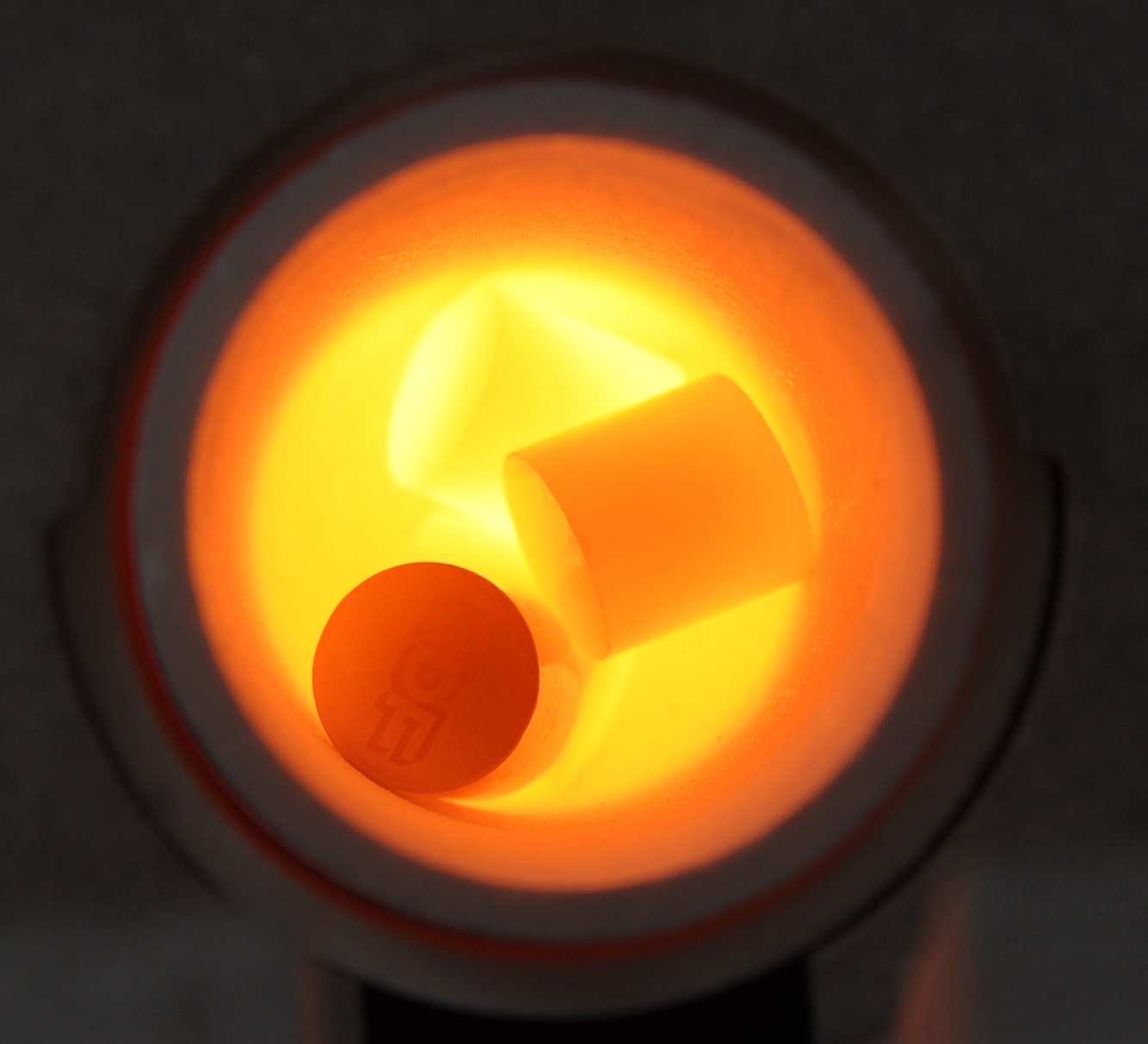

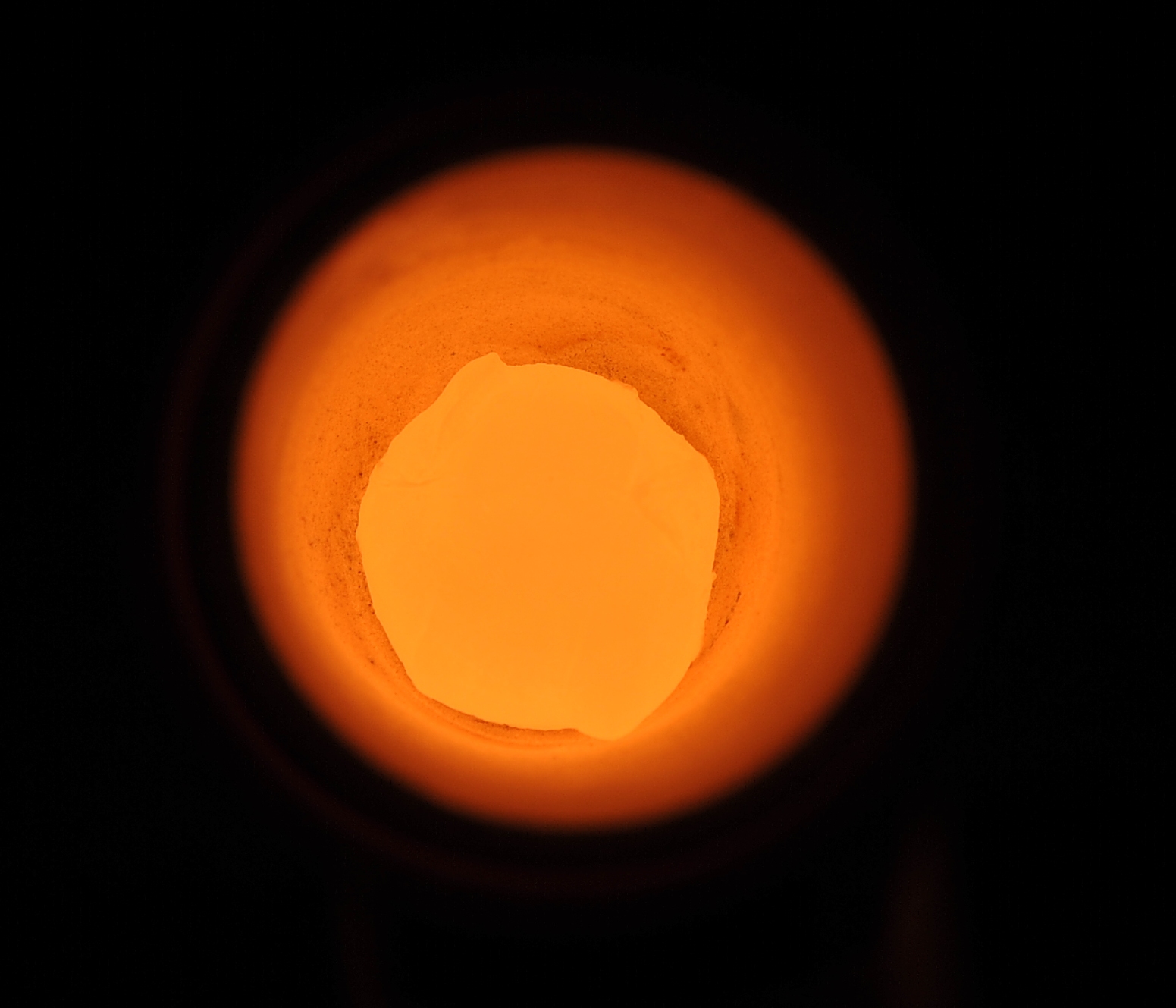

The advanced induction heating system enables dense, high-quality castings with minimal porosity. Since the alloy is melted without the use of a gas flame, gas absorption is significantly reduced. Furthermore, the chamber-inversion casting method minimizes the risk of oxide film contamination.
In addition, the vacuum-pressure casting system provides casting pressure up to 0.45 MPa, which is substantially higher than conventional centrifugal casting systems (approximately 0.1 MPa). The maintained pressure helps reduce shrinkage porosity and enables precise reproduction of intricate casting details.
■ Wide Range of Applications
Suitable for a variety of dental applications, including inlays, crowns, implant frameworks, and dentures.
Compatible with a wide range of dental alloys, from precious and semi-precious alloys to non-precious alloys (excluding titanium alloys).
■ User-Friendly Operation Panel
The operation panel is intuitively designed to follow the casting workflow, making operation simple and efficient.
The advanced induction heating system enables dense, high-quality castings with minimal porosity. Since the alloy is melted without the use of a gas flame, gas absorption is significantly reduced. Furthermore, the chamber-inversion casting method minimizes the risk of oxide film contamination.
In addition, the vacuum-pressure casting system provides casting pressure up to 0.45 MPa, which is substantially higher than conventional centrifugal casting systems (approximately 0.1 MPa). The maintained pressure helps reduce shrinkage porosity and enables precise reproduction of intricate casting details.
■ Wide Range of Applications
Suitable for a variety of dental applications, including inlays, crowns, implant frameworks, and dentures.
Compatible with a wide range of dental alloys, from precious and semi-precious alloys to non-precious alloys (excluding titanium alloys).
■ User-Friendly Operation Panel
The operation panel is intuitively designed to follow the casting workflow, making operation simple and efficient.

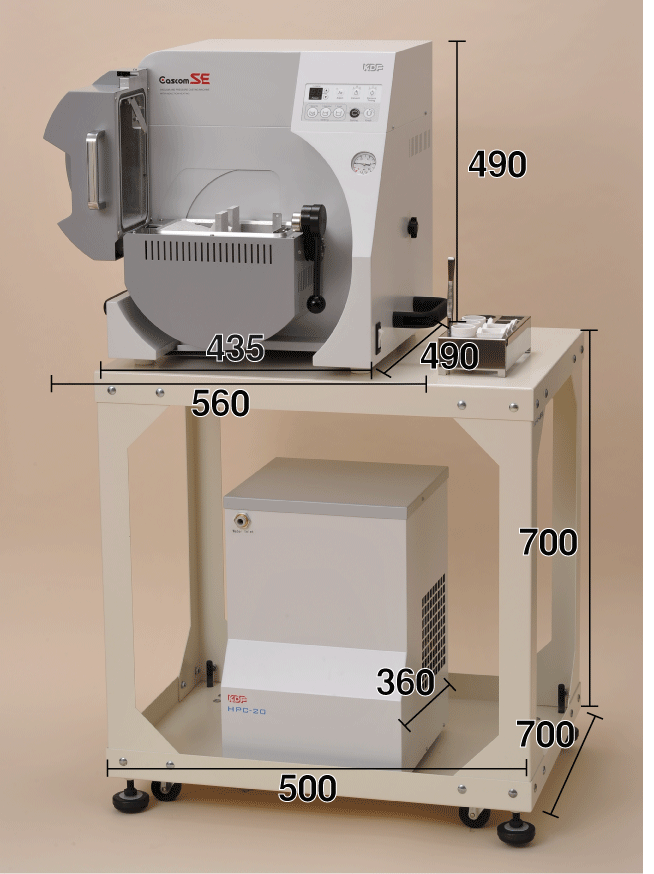

Stand(KDW-100)

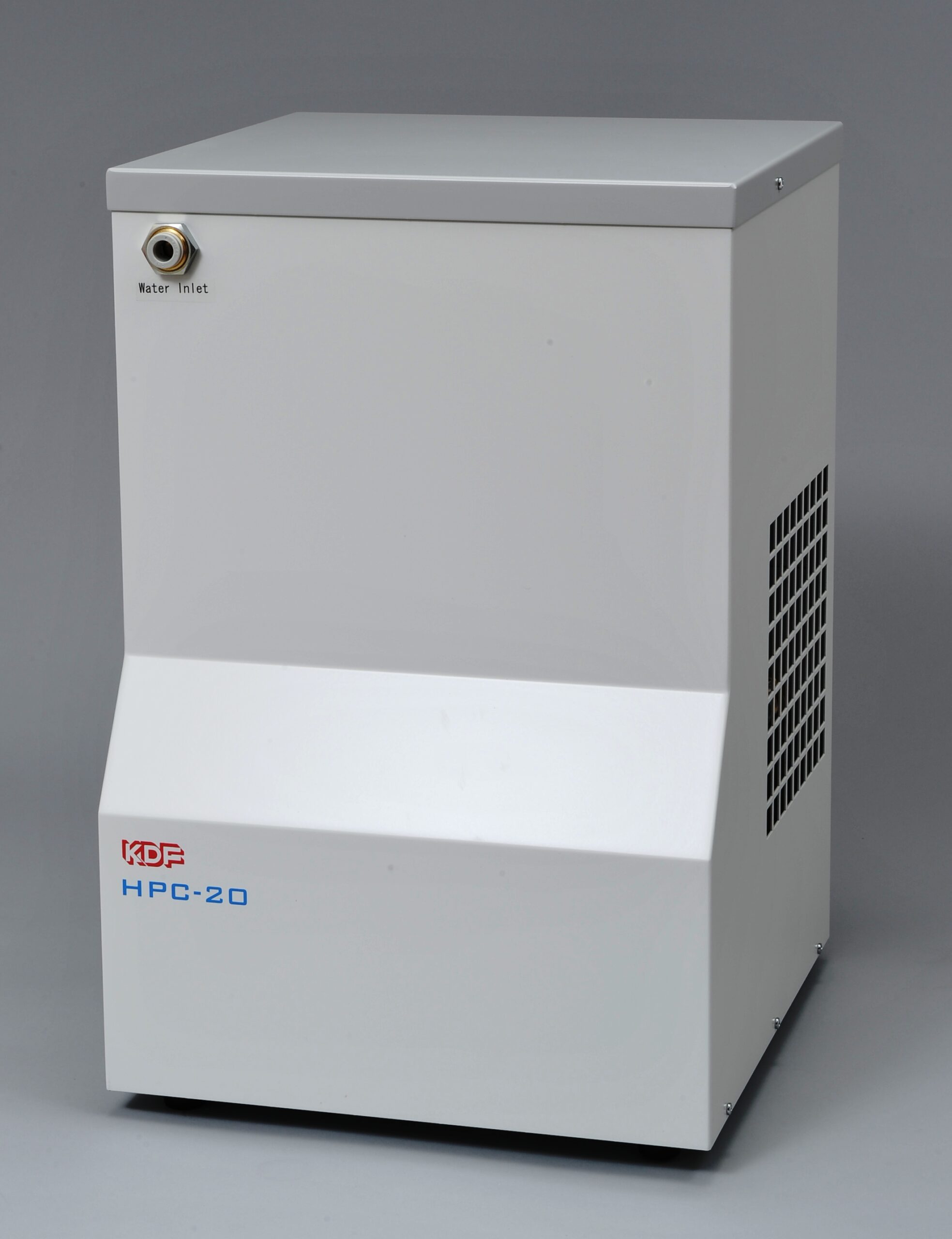

Standard chiller：HPC-20

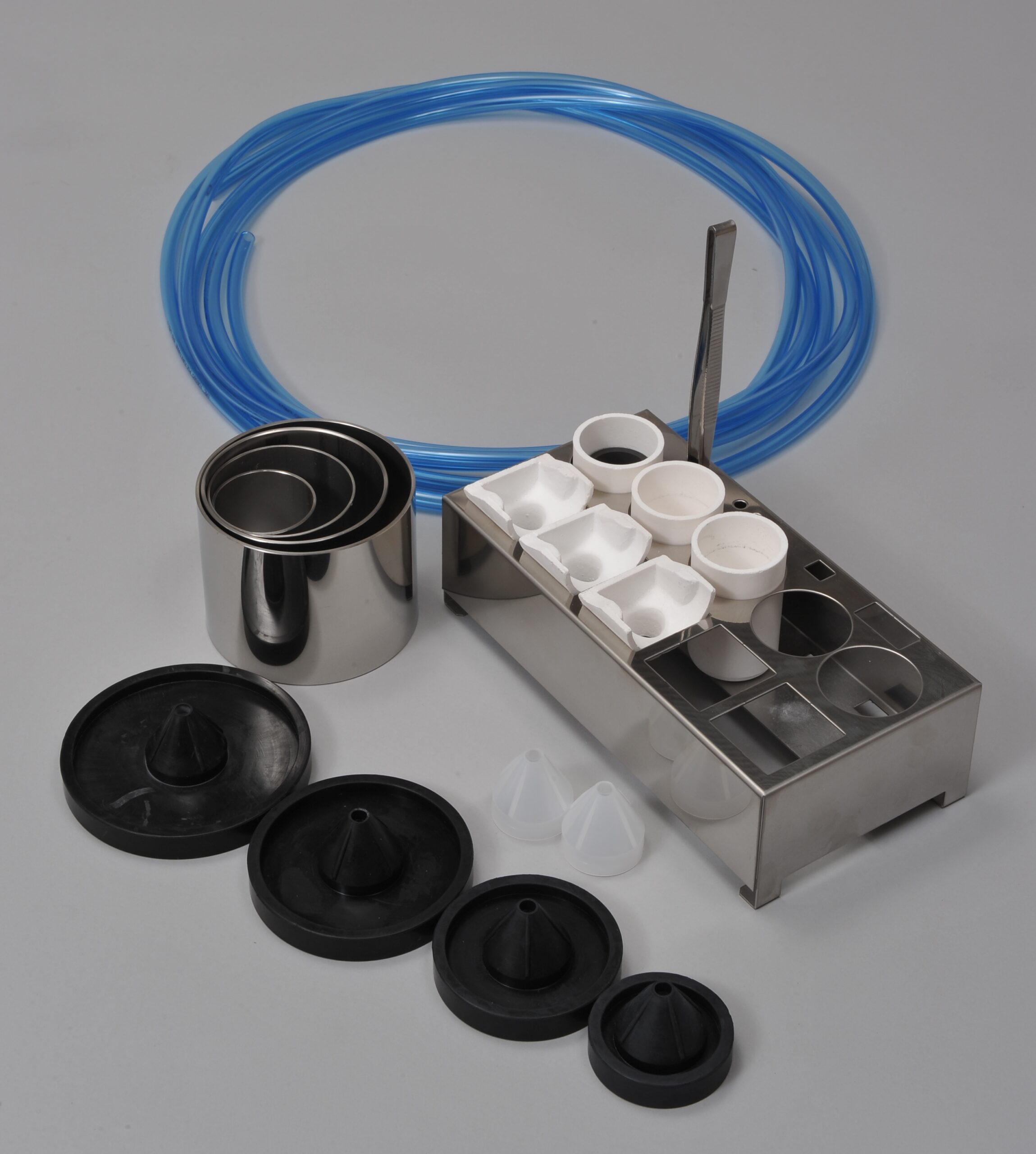

accessories
仕様
| Model | Cascom SE |
| Power requirement | AC220-240V±10% 50/60Hz |
| Power consumption | 3.5kVA Max. |
| Overall dimension | 560W×490H×490Dmm not including a projection |
| Output frequency | 30–50Hz |
| Weight | 42kg |
| Environment for set up | Temp.10–40℃, Humidity 30–90%Rh (not condensing) |
| Cooling System | Optional chiller or Direct connect water |
| Melting time | Within 3 min. for 60g of Co-Cr alloy |
| Casting method | Chamber-Inversion Vacuum-Pressure Casting System |
| Pressure | Air or Argon gas (0.35MPa) |
| Compressed Air or Argon | Air 0.5 – 1.0MPa, Argon gas 0.5 – 0.8 MPa |
| Alloy melting quantity | Co-Cr 10-60g, Gold 10-120g but less than 10cc |
| Castable Alloy |
Silver, Gold, Ceramic fused bonding alloy
(Precious, Semi-Precious, Non-Precious) except Titanium alloy
|
| Continuous Casting Capacity |
5-10 consecutive castings with standard chiller
*Optional Additional Chiller: Supports extended continuous casting operation
*Direct Water Connection: Continuous casting operation available
|
| Type of crucibles |
Ceramic crucible, Carbon crucible
|
| Crucible inner size |
Around φ25×40mm
|
| Parameter for casting |
Vacuum L (-40kPa)
M (-70kPa)
H (Continuous)
|
|
Pressure timing 1 (0.5 sec.)
2 (0.7 sec.)
3 (0.9 sec.)
|
|
| Induction power adjustable for each stage (Standby, Holding, Final): 0-99% | |
